About This

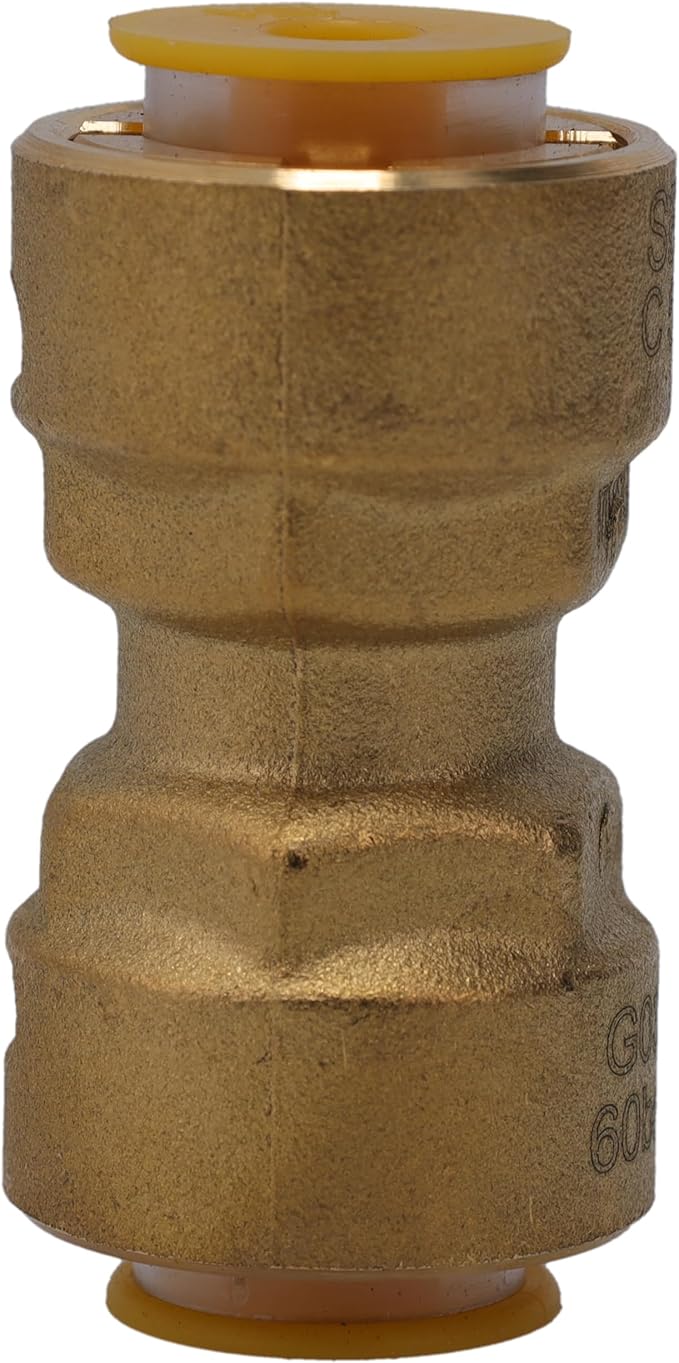

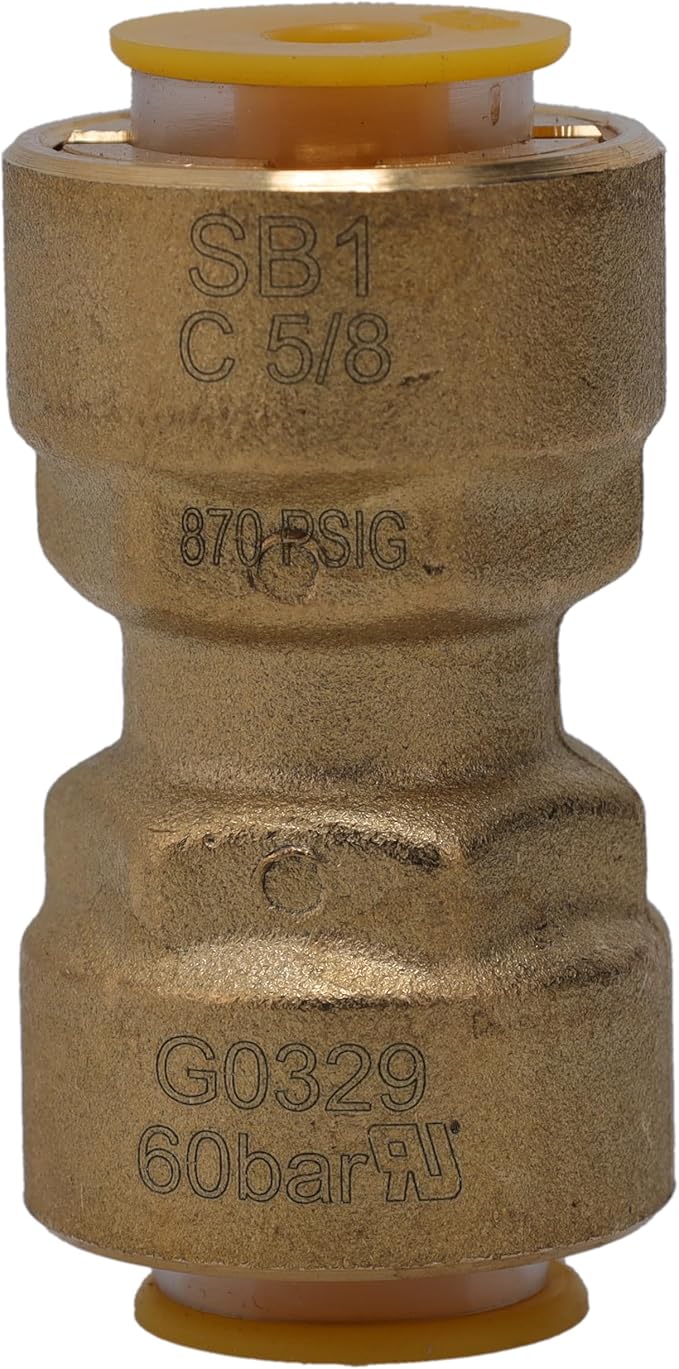

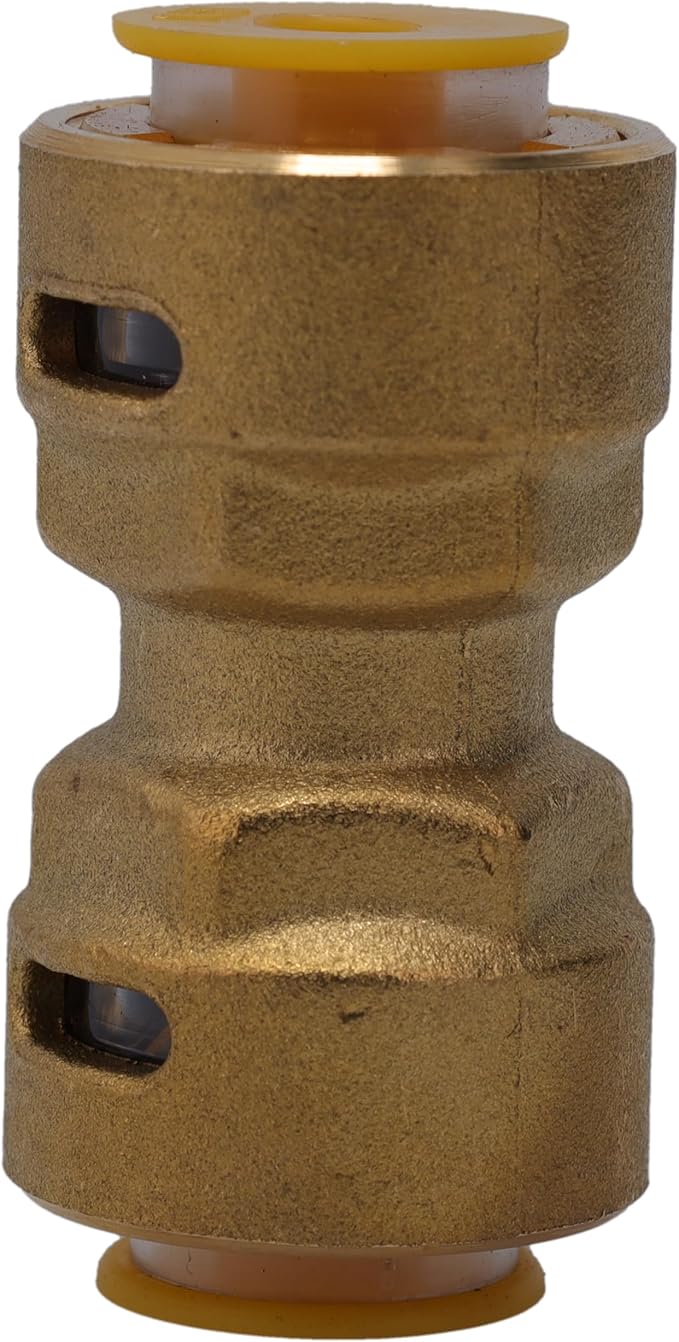

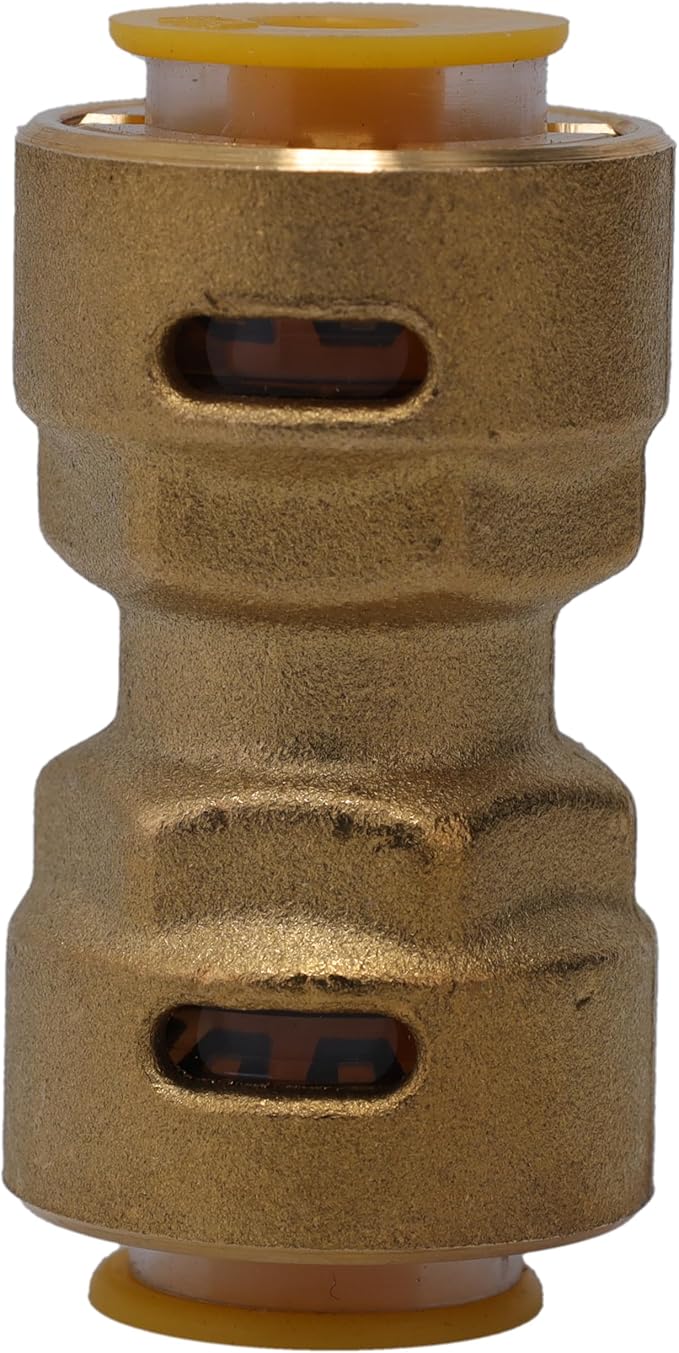

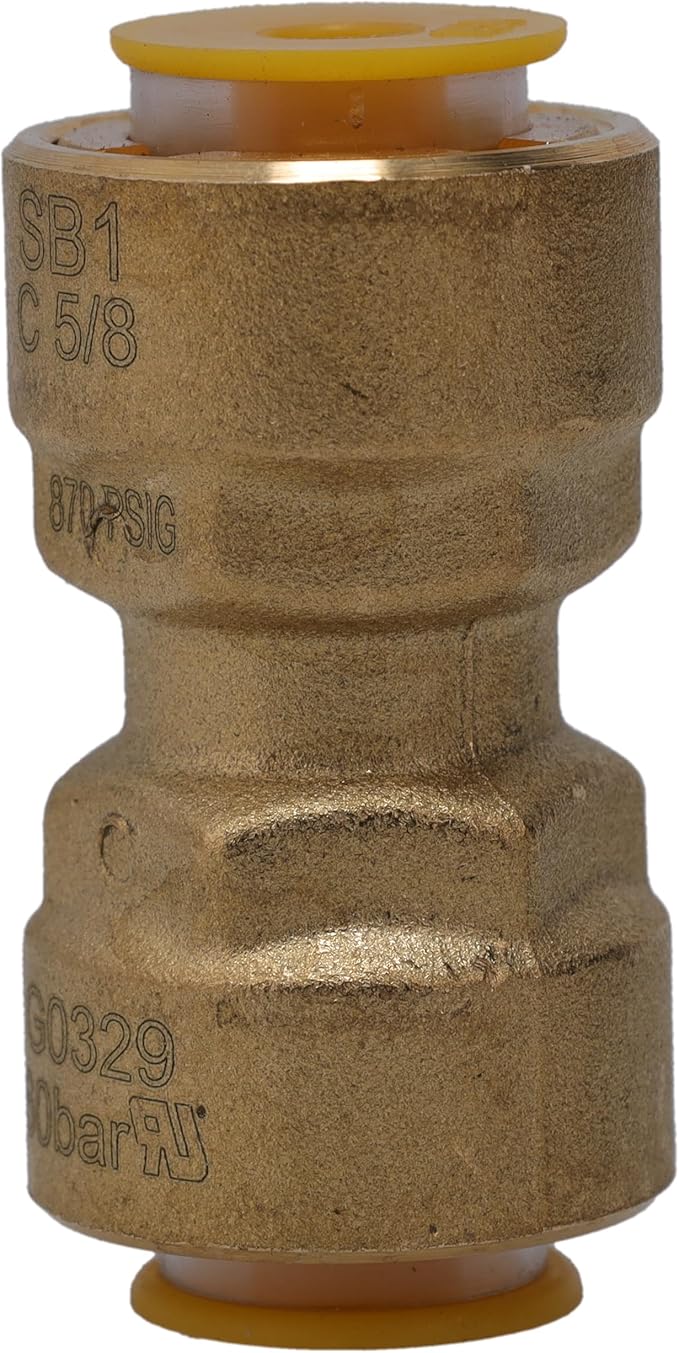

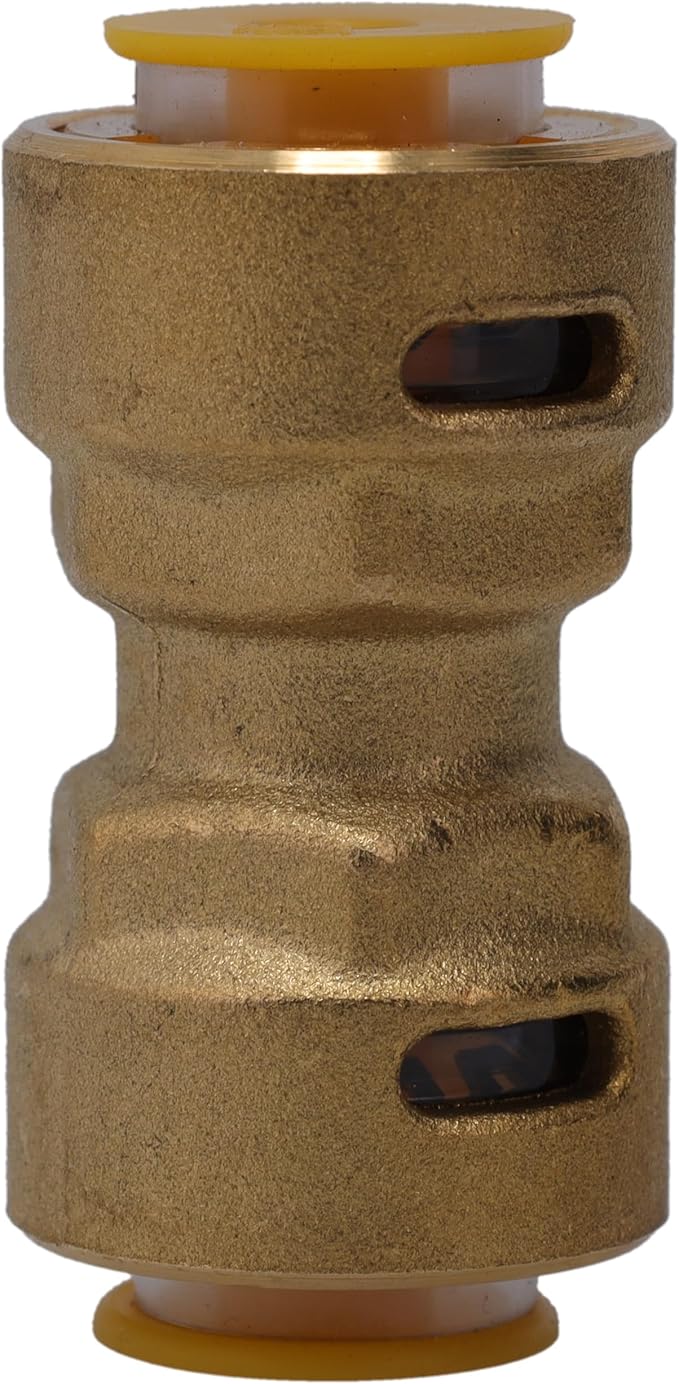

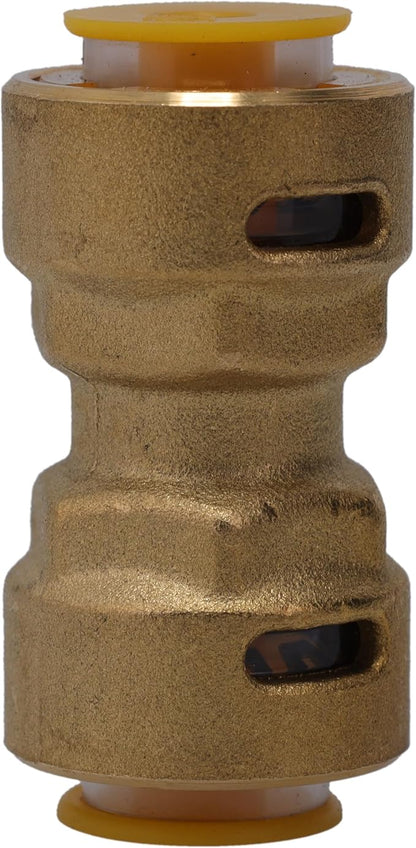

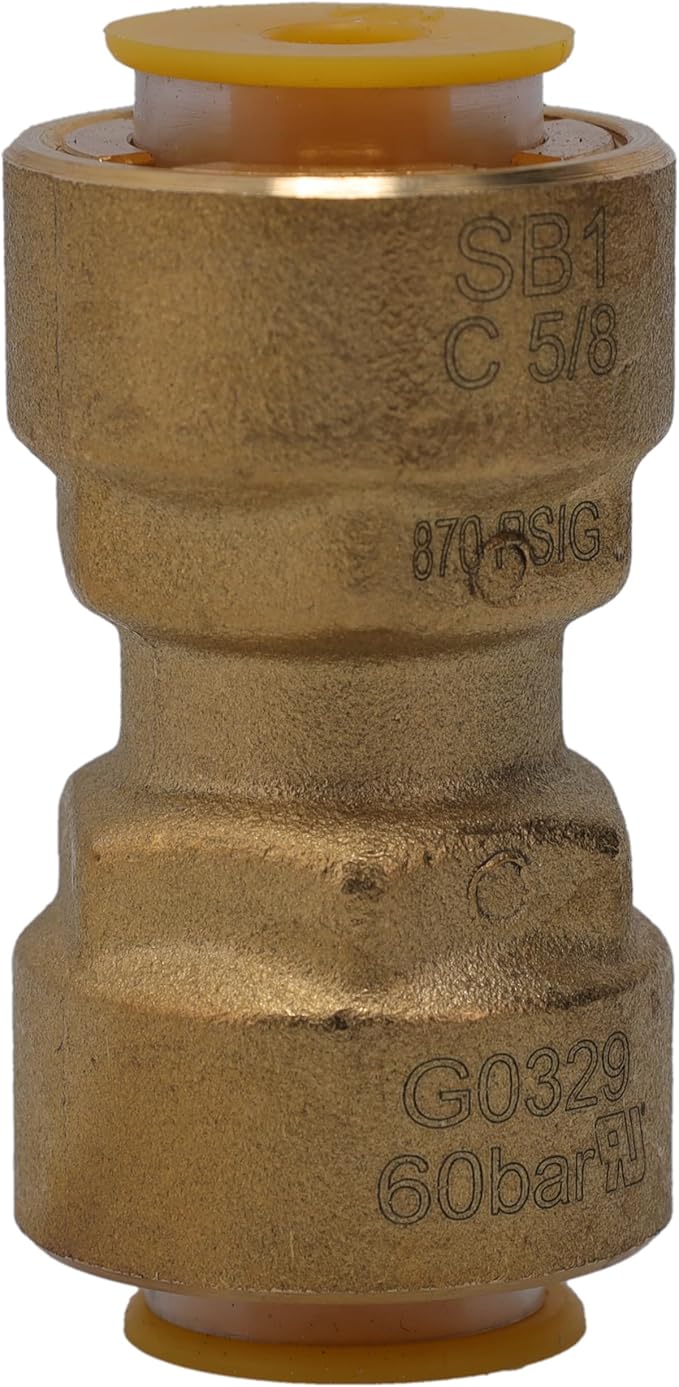

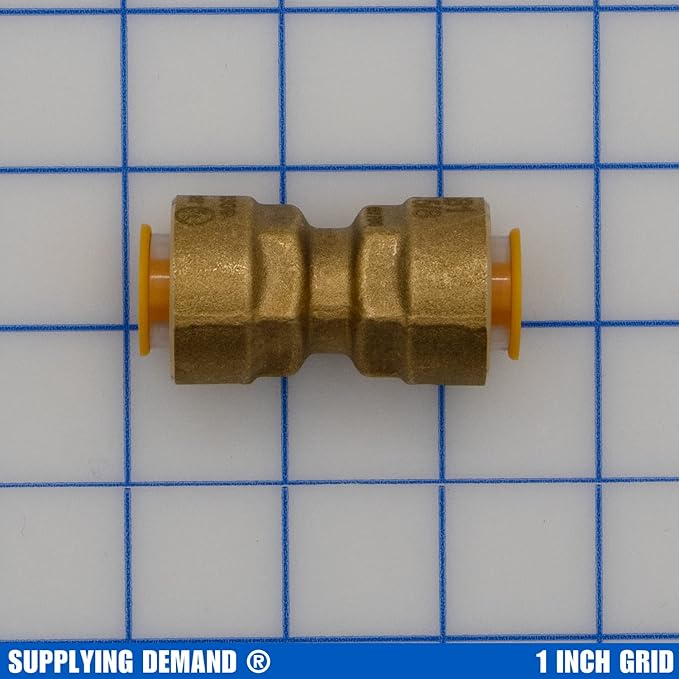

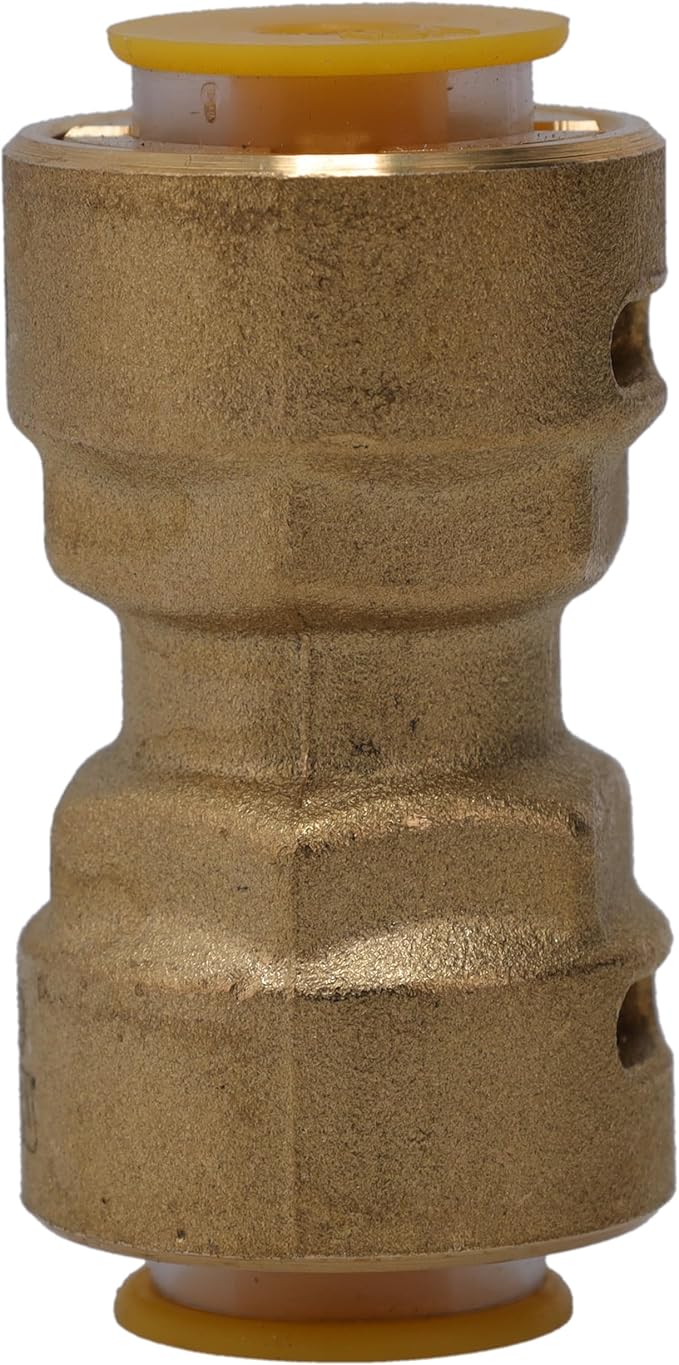

• 5/8 Inch | No brazing, tools, or nitrogen purge needed for installation | C3771 brass body
• Approved for hard drawn copper: 1/4 - 7/8 Inch type ACR, M, L, K | Approved for hard soft copper (annealed): 1/4 - 7/8 Inch type ACR, L, K
• Connection thread: None | Outside diameter (inch): 1.181 | Length (inch): 2.244 | Connection size (inch): .625 | O-Ring material: Chloroprene | Fitting material: C3771, polycarbonate | Vacuum pressure capability: 30 Microns | Minimum burst pressure: 3600 PSI / 250 Bar | Maximum rated pressure (MRP): 870 PSI / 60 Bar | O-Ring temperature: -40°F / 250°F (-40°C / 121°C) | Continuous operating temperature: 250°F / 121°C
• Supplying Demand replacement parts are compatible with Major Brands, but you should always verify fitment with your specific application.
• SD products come in Supplying Demand packaging.

Overview

• Size : 5/8 Inch
• Material : Brass
• Brand : Supplying Demand
• Color : Brass
• Item dimensions L x W x H : 2.24 x 1 x 1 inches
• Connector Type : Coupling
• Thread Size : 0.3125 inch
• Exterior Finish : Brass
• Thread Type : NPT
• Number of Pieces : 1
