About This

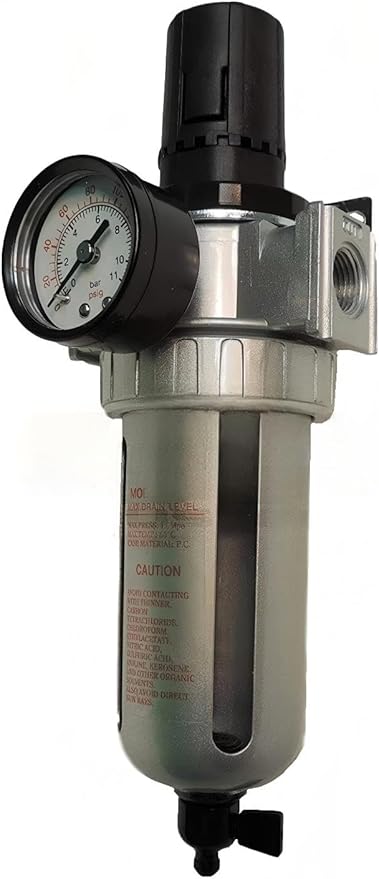

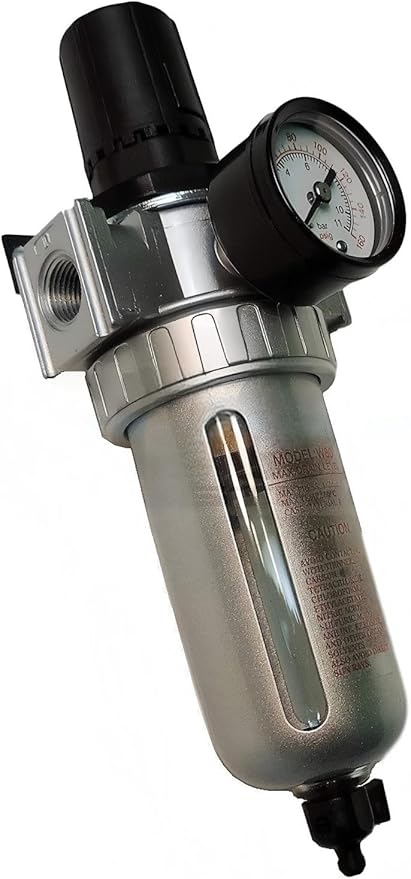

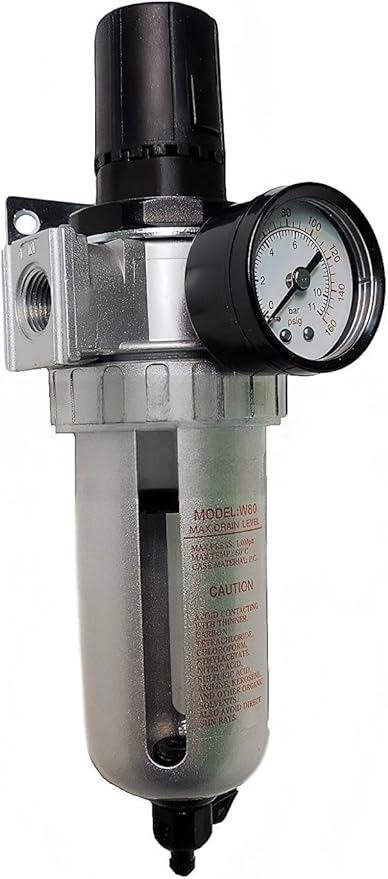

• Integral Style Filter Regulator Combination PUSH PULL ADJUSTMENT KNOB THAT SHOWS PRESSURE INCREASE AND DECREASE MARKED ON TOP OF THE KNOB.SIMPLY LIFT KNOB TO ADJUST PRESSURE RANGE AND PUSH DOWN TO LOCK INTO PLACE
• 89 CFM FLOW RATE ， REGULATOR WILL ADJUST 7 PSI MINIMUM THROUGH 150 PSI MAXIMUM ， 215 PSI MAXIMUM INPUT PRESSURE ， 3/8" FEMALE NPT INLET X 3/8" FEMALE NPT OUTLET. PLEASE NOTE IF DETERMINING YOUR NPT THREAD SIZE WITH A TAPE MEASURE, RULER OR CALIPER. 3/8" NPT MEASURES 0.675" OUTSIDE THREAD DIAMETER IN INCHES

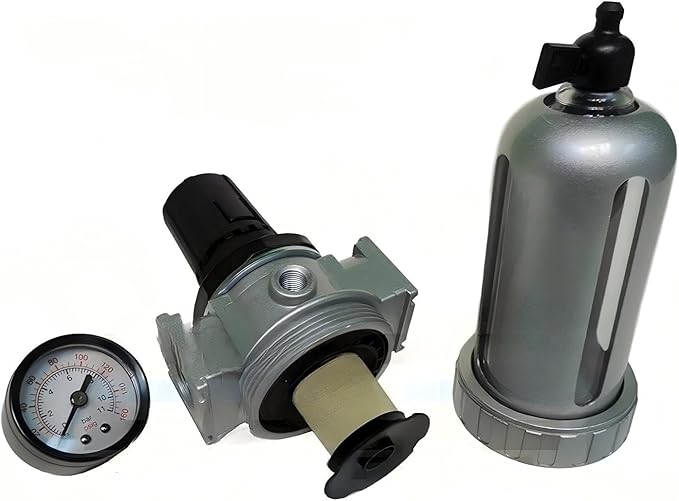

• 5oz POLYCARBONATE BOWL WITH METAL BOWL GUARD. THIS UNIT INCLUDES A SEMI AUTOMATIC DRAIN. DRAIN IS DESIGNED TO HOLD PRESSURE ONCE 15 PSI OR GREATER IS APPLIED TO THE BOWL. ONCE THE PRESSURE DROPS BELOW 15PSI, THE UNIT WILL AUTOMATICALLY DRAIN THE CONTENTS SIMILAR TO AN OVERNIGHT DRAIN

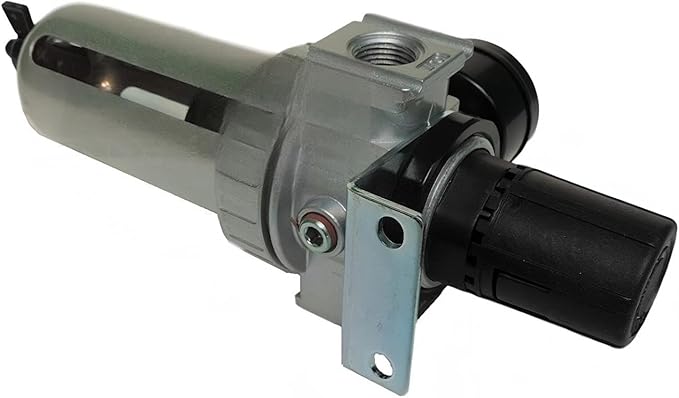

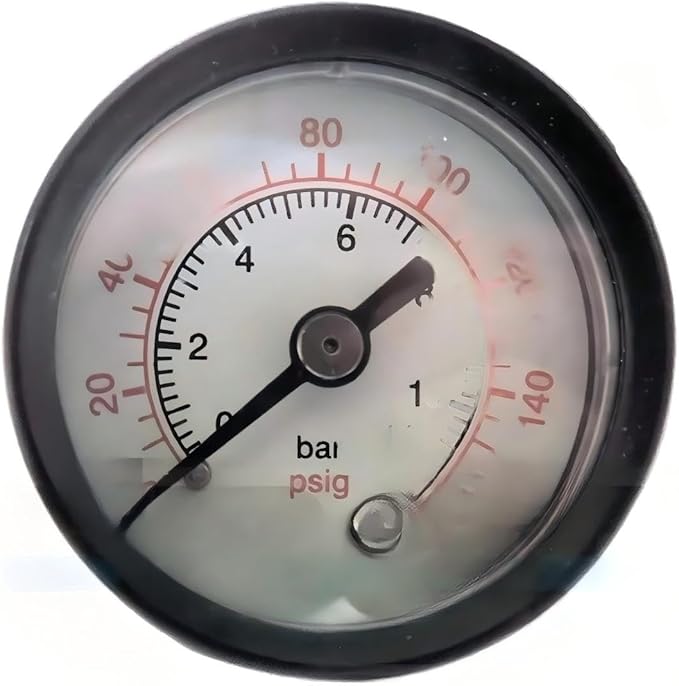

• WALL MOUNTING BRACKET AND BACK MOUNT PRESSURE GAUGE INCLUDED WITH EACH UNIT. 5 MICRON ELEMENT FOR PARTICULATE FILTER REMOVES 95% OF WATER MOISTURE FROM COMPRESSED AIR LINES
• Pneumatic tool accessories must meet the pressure level requirements of the working environment, and overloading may cause component failure，Please confirm that the device parameters match before purchasing

Overview

• Brand : Generic
• Included Components : 3/8" Compressor Integral Style Filter Regulator Combination
• Model Name : 3/8" Integral Style Filter Regulator Combination
• Maximum Operating Pressure : 215 Pound per Square Inch
• Manufacturer : China
