About This

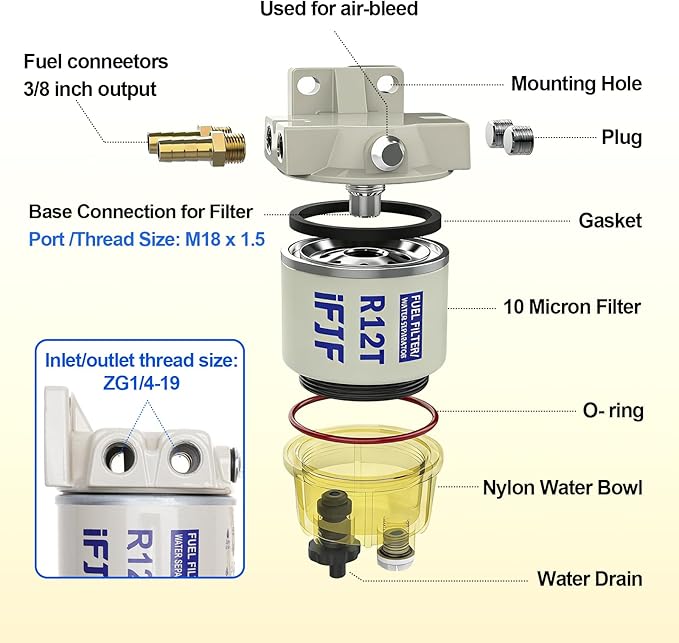

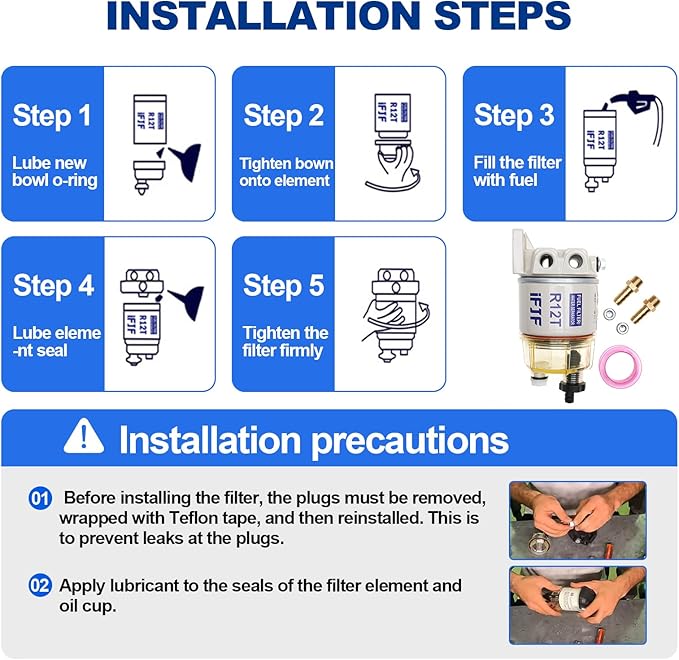

• CRITICAL LEAK-PROOF INSTALLATION GUIDE: To ensure a perfect seal and prevent fuel leakage, you MUST apply oil to lubricate the O-rings (between base, tank, and bowl) before installation. This product features a 4-port design (2 inputs, 2 outputs); for the unused ports, remove the pre-installed plugs, wrap them with Teflon tape, and re-tighten securely. Proper lubrication and thread sealing are the keys to a leak-free system.

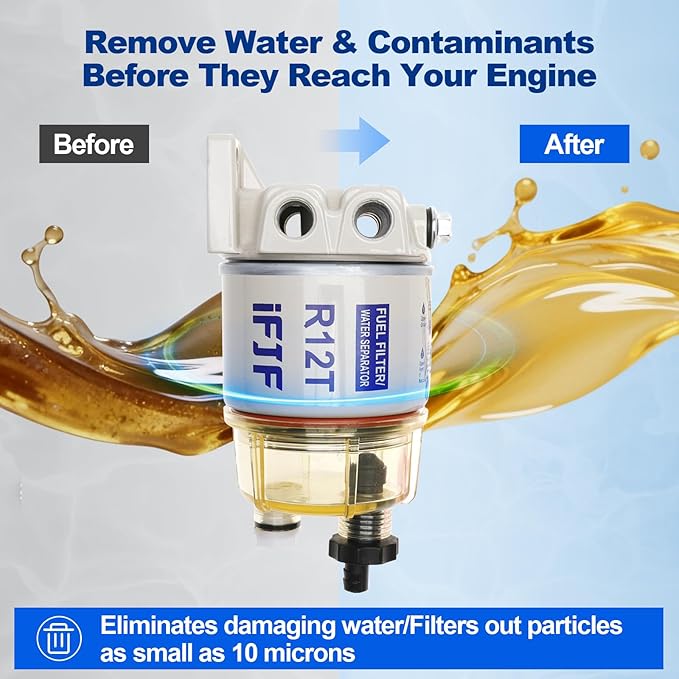

• 10 MICRON FILTRATION EFFICIENCY: Designed for high-performance diesel engines, this R12T separator delivers a flow rate of 15 GPH (57 LPH). The advanced filter media captures particles as small as 10 microns and effectively separates water from fuel. This protection is vital for maintaining fuel injector health and preventing engine failure in humid marine or agricultural environments.

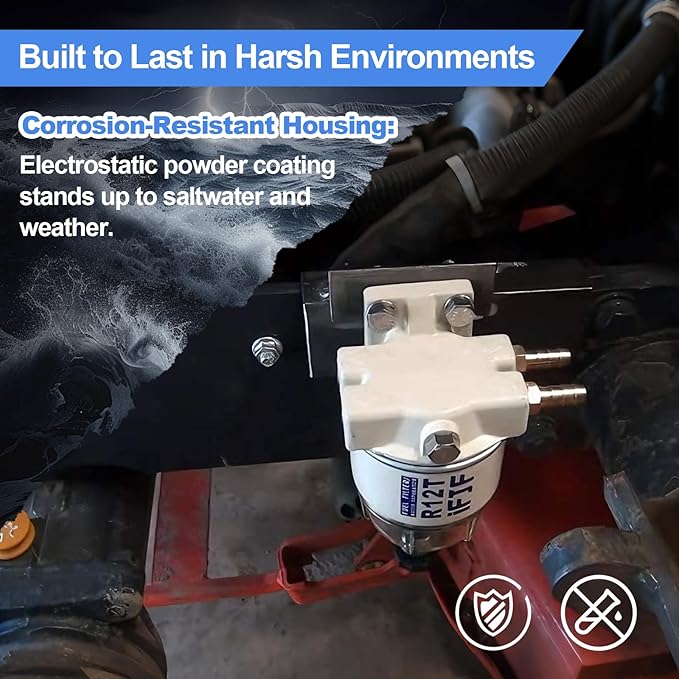

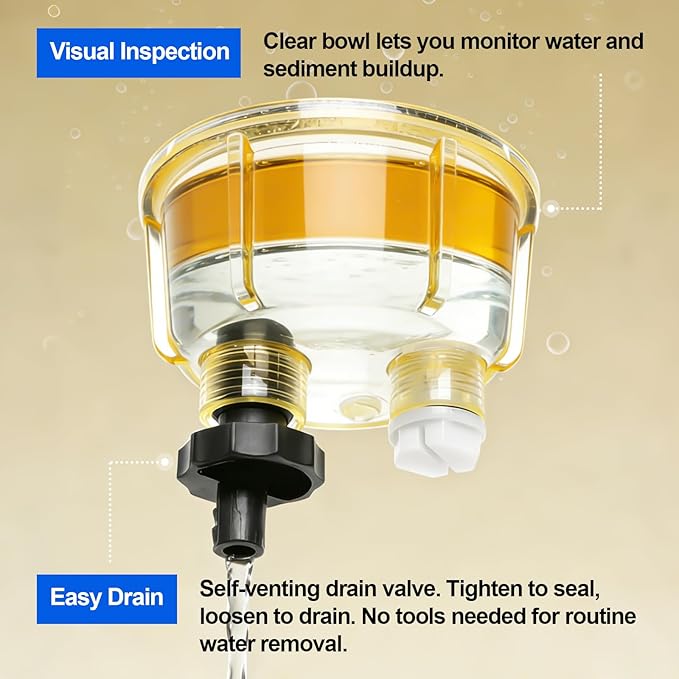

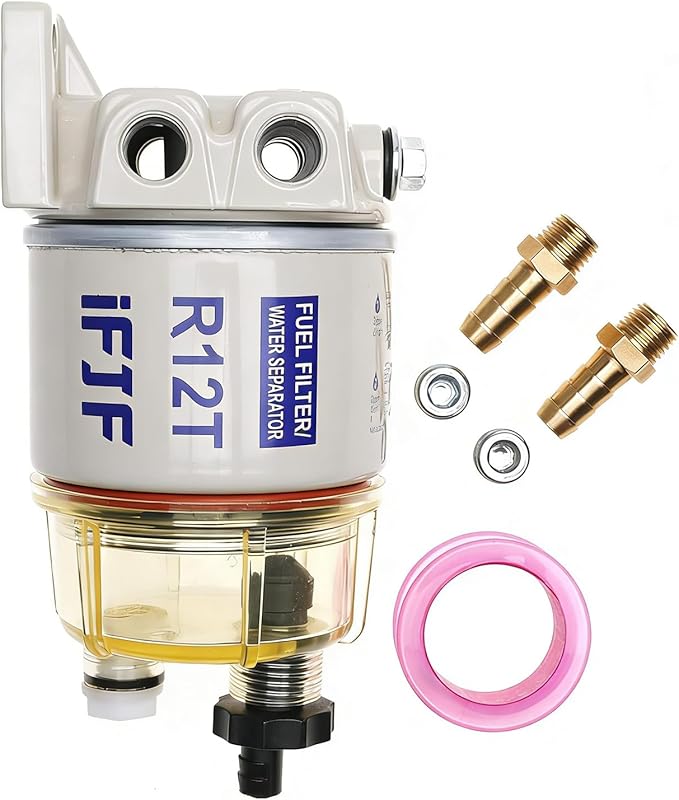

• CORROSION-RESISTANT COATING & BOWL: The filter housing is finished with a durable electrostatic powder coating to resist rust in harsh ocean or lake conditions. It includes a reusable clear nylon collection bowl that allows for visual fuel inspection. The self-venting drain lets you easily remove separated water—simply loosen to drain and tighten securely to seal.
• VERSATILE MOUNTING SCENARIOS: Engineered for compact spaces, this assembly is ideal for outboard motors, tractors, and oil storage tanks. Installation Tip: If you cannot drill holes directly into your boat's hull, we recommend mounting the filter on a wooden plate (min. 1cm thick) using screws, then adhering the plate to the boat surface with marine-grade structural glue.
• ESSENTIAL START-UP PROTOCOL: To prevent air locks or dashboard errors, fill the filter with fuel BEFORE starting the engine. This spin-on assembly is compatible with standard replacement filters (Replaces S3240, 120AT, 18-7987, RK10222). Ensure your fuel line fittings match the NPT ZG1/4-19 thread specification before connecting.

Overview

• Brand : iFJF
• Product Grade : Performance Part
• Outer Material : Nylon
• Vehicle Service Type : Tractor

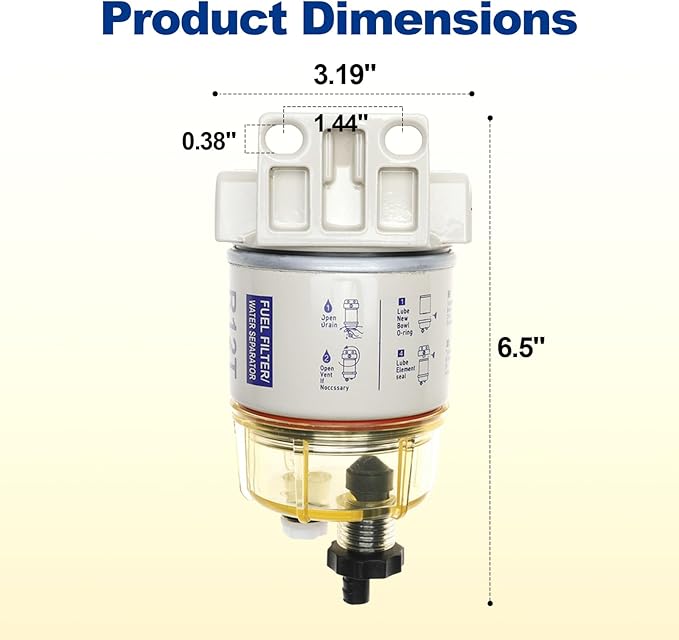

• Item Diameter : 3 Inches
