About This

• Electromagnetic relays are widely used: household air conditioner compressor motors, fan motors, cooling pump motors, starter relays for car starters, spur relays, motors, generator circuit breakers, industrial relays, etc

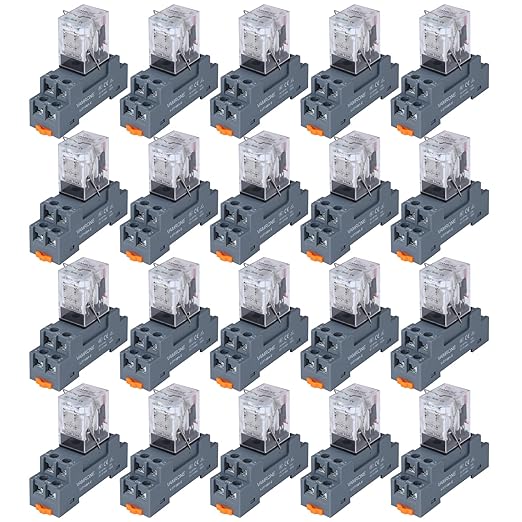

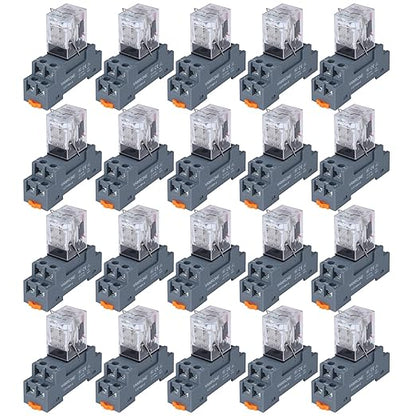

• Product Name: Electromagnetic Power Relay; Model: YJ2N-LY Type: DPDT; number of terminals: 8
• Coil voltage: 110/120VAC; Contact capacity: 10A 240VAC/28VDC
• Red mechanical indicatoe:It can intuitively judge whether the relay is attracted
• LED signal lamp : It can judge the AC or DC coil, and judge whether the coil is energized

Overview

• Connector Type : Screw
• Contact Material : Silver
• Contact Type : 2no 2nc
• Current Rating : 10 Amps
• Mounting Type : DIN Rail Mount
