About This

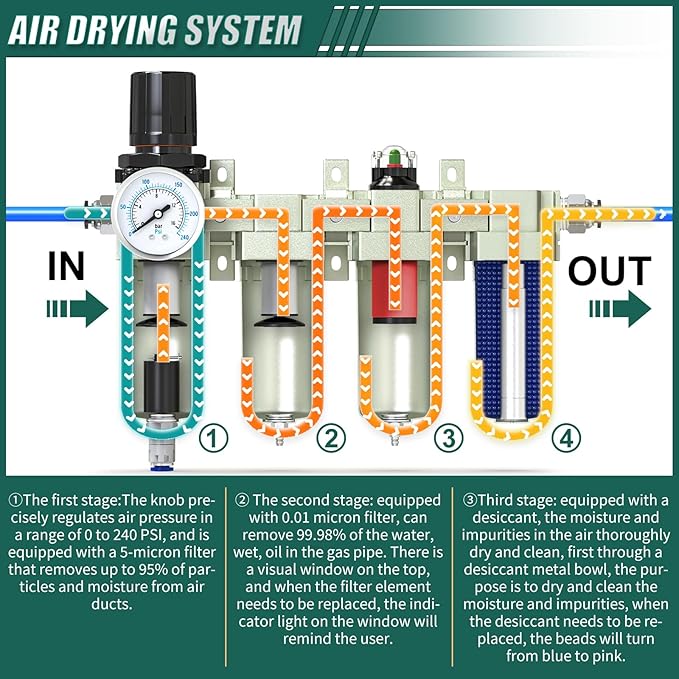

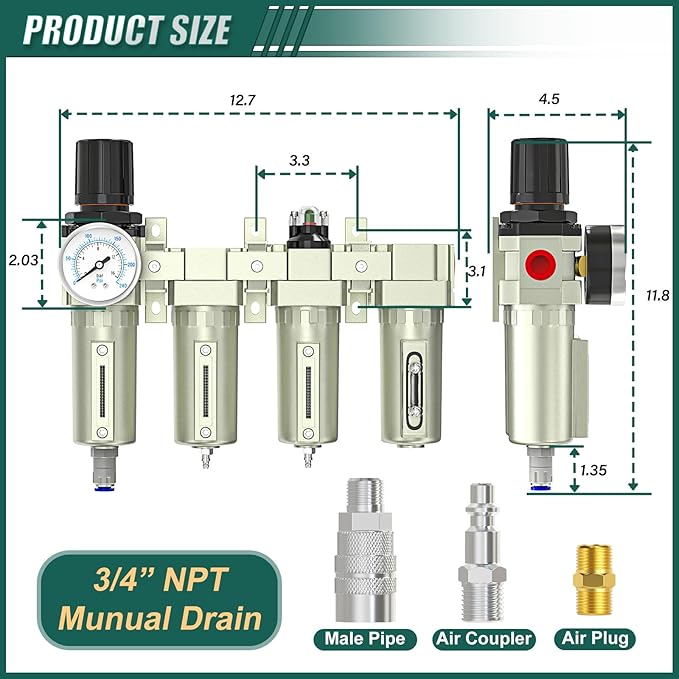

• The four-stage air filtration system features two 3/4" NPT ports and one 1/4" NPT pressure gauge port, designed for stable operation within the range of 0-240 PSI, and includes an automatic drain function.

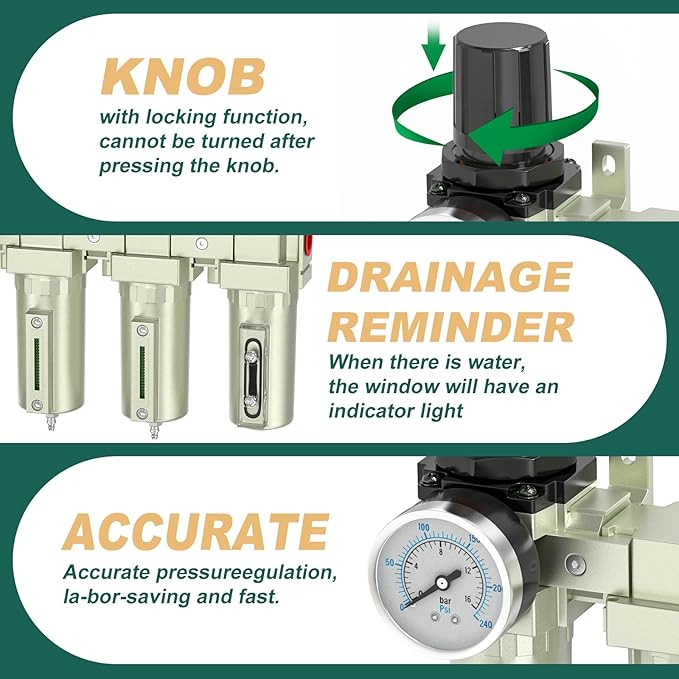

• STAGE 1&2: Filter and Regulator - The knob has a locking feature to prevent accidental rotation, for accurate and safe use. The filter includes a 5-micron cartridge designed to filter out a high percentage of particles and moisture.

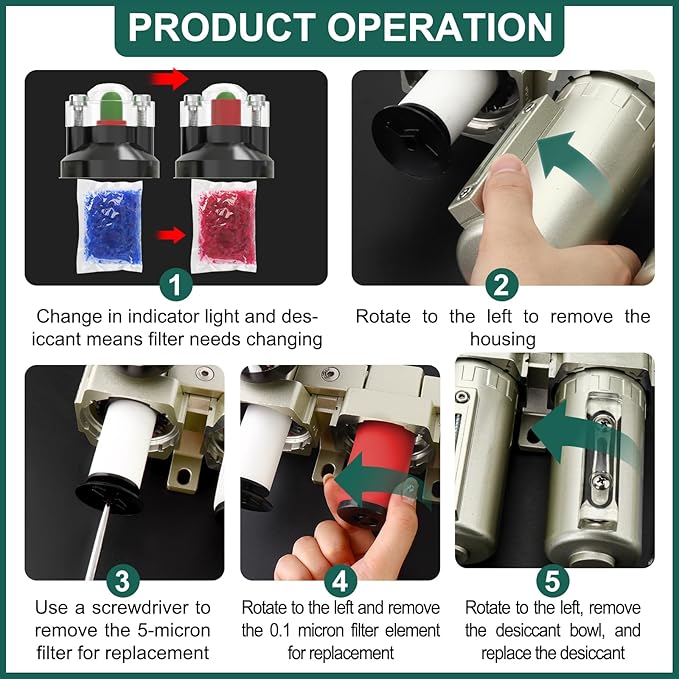

• STAGE 3: The coalescing filter uses a 0.01-micron filter element designed to reduce water, oil, and fine particles that have passed through the previous stages. When the red indicator pops out, it suggests that the filter element may need to be replaced.
• STAGE 4: Desiccant Air Dryer - Includes a metal bowl filled with desiccant beads to help absorb residual moisture and impurities from the air. When the desiccant beads change from blue to pink, it shows that the desiccant may need to be replaced.

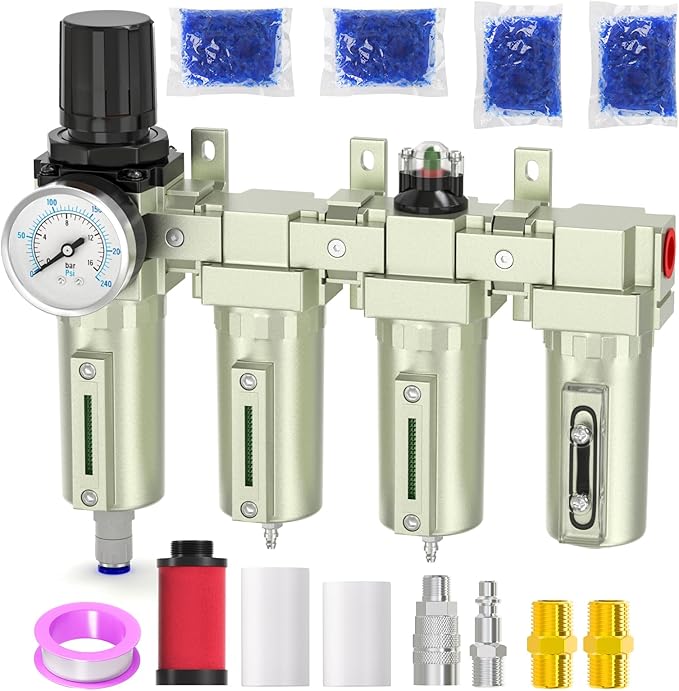

• ACCESSORIES: 1* Level 4 3/4 Industrial filter (automatic), 4* desiccant, 2* outer filament 3/4", 2* filter cartridge (5 microns), 1* filter cartridge (0.01 microns), 1* 3/4" Male and female connector combinations, 1* PTFE tape
